13.50 Heritage Grid

13.50 Heritage Grid is a primed AR (alkali-resistant) glass mesh which is used for the structural strengthening of masonry structures.

Category:

Description

13.50 Heritage Grid is a primed AR (alkali-resistant) glass mesh which is used in combination with Rockbond acrylic-modified structural cementitious mortars for the structural strengthening of masonry structures (brick and block).

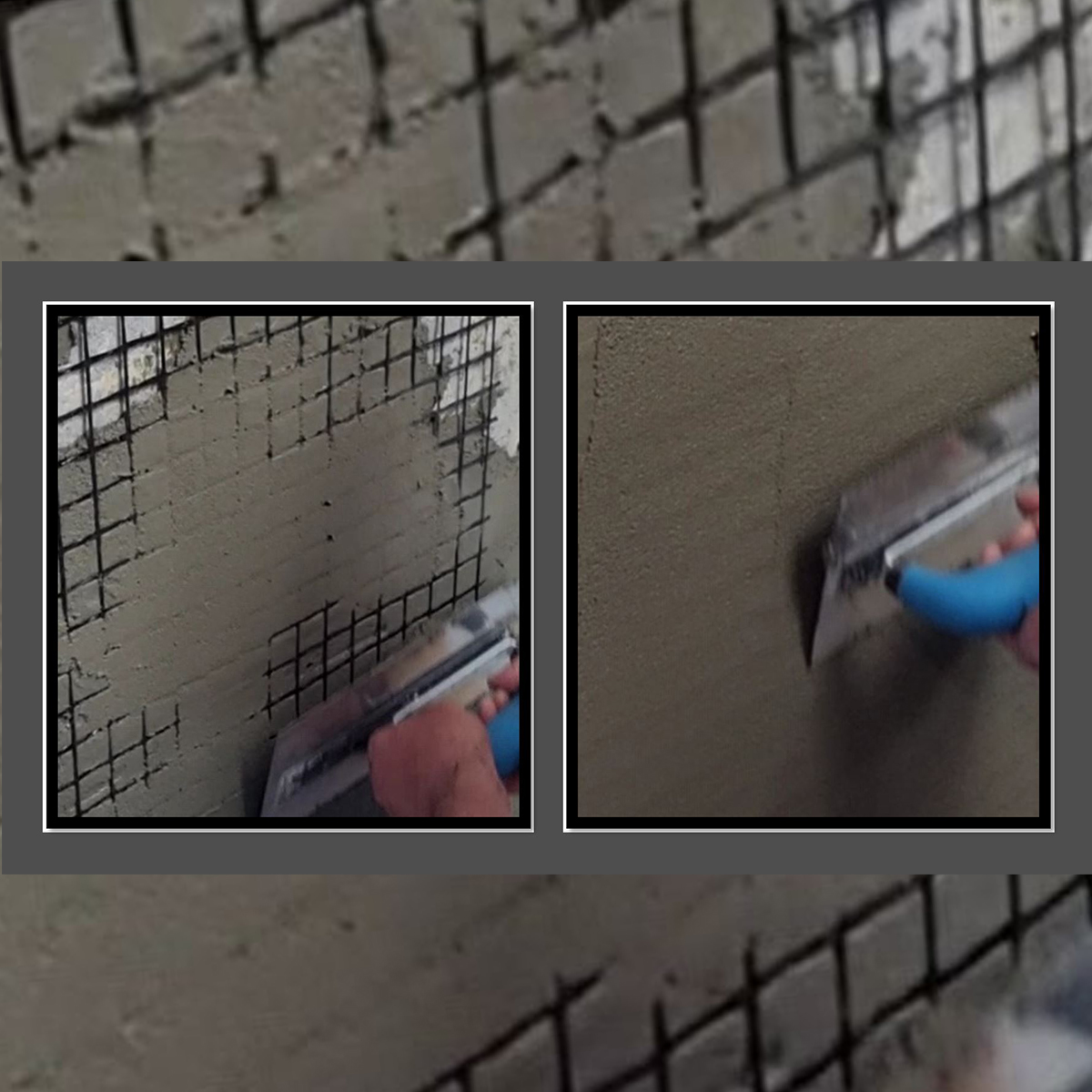

Heritage Grid is most often used in combination with Rockbond 1.12 Waterproof Render for structural “reinforced” strengthening of Heritage structures to improve both the resistance and the ductility.

Technical Information:

  • Type of fibre: AR type glass fibre
  • Finished Weight: 230 g/m² (EN 12127:1997
  • Coating: 39 g/m²
  • Mesh size: 25 x 23.4 mm
  • Tensile strength: 2050 N/5cm (ISO 4606:1995)
  • Elongation: < 5%
  • Young’s modulus: 72 GPa
  • Colour: Black
  • Roll measurement: 50mt x 100cm rolls
  • Weight per roll: 11.25kg

Renders used with 13.50 Heritage Grid:


Further information:
